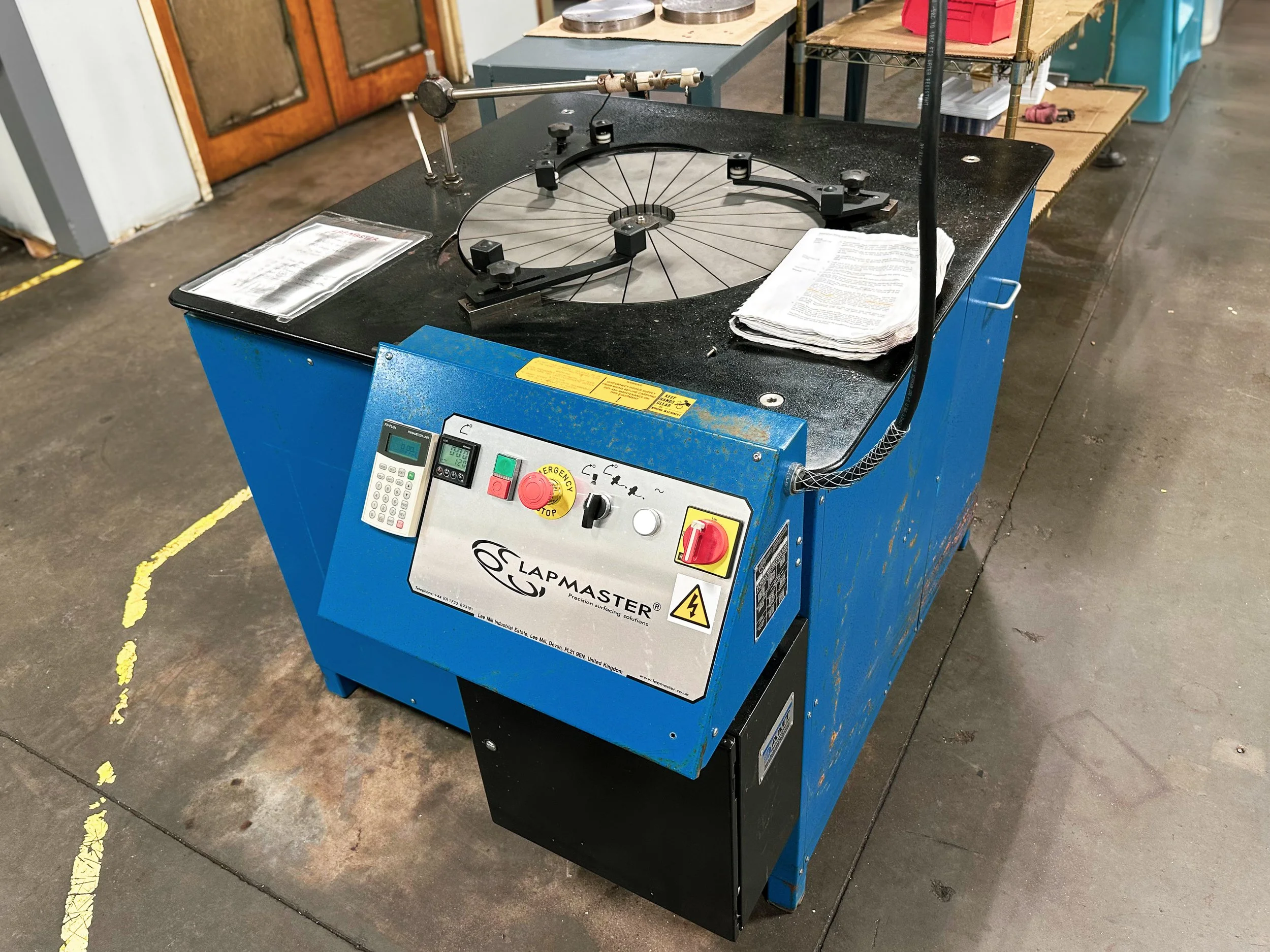

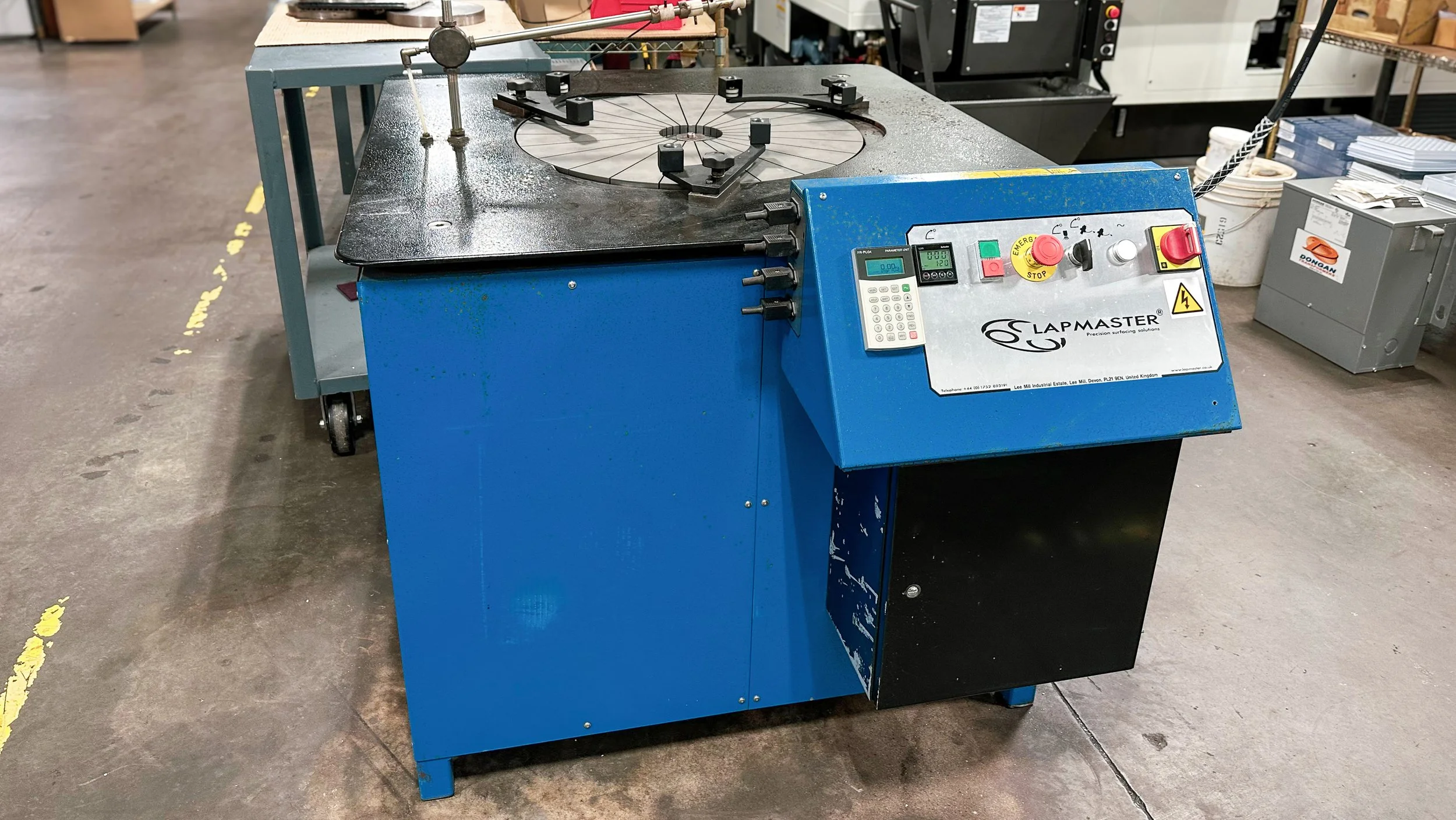

Lapmaster Model 24

The Lapmaster Model 24 is a vital component of our precision surfacing capabilities. It is engineered to achieve exceptional flatness and surface finish on a wide variety of materials. This system allows us to process everything from fragile semiconductors and electro-optics to rugged ceramics and metals with exacting standards. The machine features a heavy-duty tubular steel base that provides maximum stability during operation. Its integrated abrasive distribution system ensures a consistent and high-quality finish for every batch

Key Features and Specifications:

  • Plate Diameter: 24" (610 mm) O.D. x 4.5" (114 mm)

  • I.D. Drive Unit: High-torque 1.5 kW (2 hp) motor with a maintenance-free gear reducer

  • Plate Speed: Standard 70 rpm (Variable speed optional)

  • Construction: Heavy-duty tubular steel floor-standing base

  • Dimensions (Open Face): 43" x 52.8" x 36" (1100 mm x 1350 mm x 915 mm)

Features & Benefits

  • Versatile Material Processing: The Model 24 is designed to handle a diverse range of materials. We can effectively process soft materials like electro-optics as well as hard materials such as ceramics and metals.

  • Superior Flatness Control: The system utilizes three high-density cast iron conditioning rings equipped with adjustable roller bearing yoke assemblies. This design actively maintains the flatness of the lap plate, ensuring consistent results across all parts.

  • Robust & Stable Design: Built on a heavy-duty tubular steel frame, the machine minimizes vibration during the lapping process. This structural integrity is essential for achieving high-precision surface finishes.

  • Efficient Abrasive System: The fully integrated abrasive system includes a pump, tank, and multi-point distribution. This setup guarantees that the lapping compound is applied evenly for uniform material removal.

  • Operator Safety & Ergonomics: The pneumatic lift version incorporates two-hand anti-tie down controls for safe operation. A heavy-duty vertically adjustable work table further enhances operator efficiency and ease of use.
