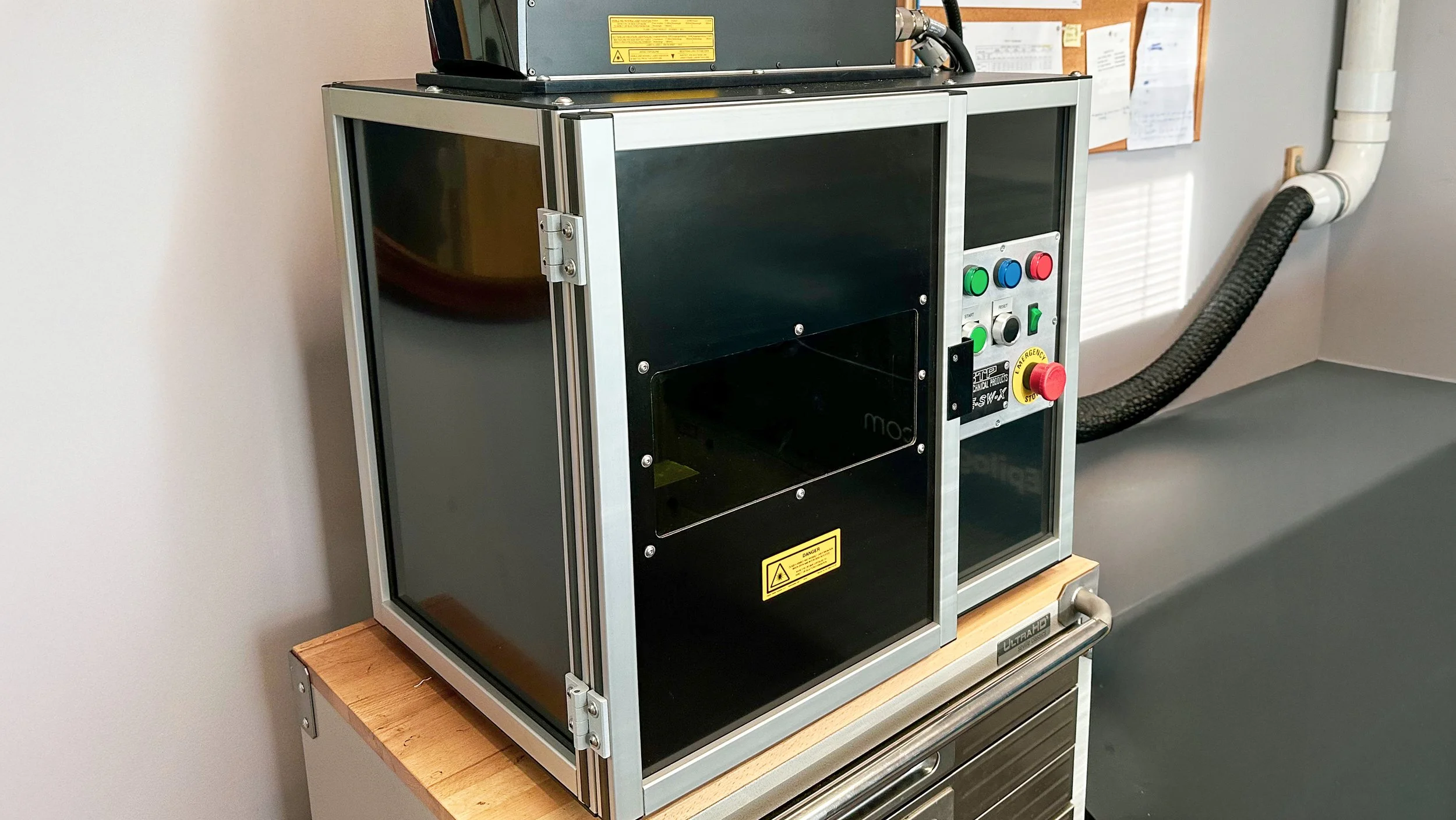

Keyence MD-X2520A Hybrid Laser Marker

Our Keyence MD-X2520A is a pivotal asset in our finishing and identification department, providing state-of-the-art marking capabilities for a vast array of materials. Its advanced 3-Axis control allows for distortion-free marking on complex shapes, including stepped, slanted, and curved surfaces, without physically rotating the part. With its high-power hybrid laser source and wide marking area, this system ensures we deliver permanent, high-definition serialization, logos, and traceability codes with unmatched precision and speed.

Key Features and Specifications:

  • Marking Area: 330 mm x 330 mm x 42 mm (12.99" x 12.99" x 1.65")

  • Laser Source: High-power 25W YVO4 Hybrid Laser (Class 4)

  • Marking Speed: High-speed scanning up to 8,000 mm/s

  • Resolution: Ultra-fine 5 µm marking resolution

  • Durability: IP64-rated marking head for industrial reliability

Features & Benefits

  • High-Definition Clarity: Utilizing a hybrid YVO4 laser source, this system achieves a high peak power that produces incredibly sharp, high-contrast characters and codes, ensuring legibility even at microscopic sizes.

  • 3-Axis Flexibility: The XYZ simultaneous scanning method enables precise focal adjustments in real-time, allowing for consistent marking quality on cylinders, cones, and irregular surfaces without distortion.

  • Expansive Work Envelope: The wide-area lens configuration provides a large 12.99-inch square marking field, enabling the processing of larger components or high-volume batches in a single run to maximize throughput.

  • Versatile Compatibility: Capable of marking a wide range of standard fonts, barcodes, 2D codes (QR, DataMatrix), and custom CAD logos, making it ideal for strict traceability and branding requirements.

  • Precise Control: The system features advanced variable focal length control (± 21 mm), ensuring that the laser remains perfectly focused across varying part heights and geometries.
